Metal Injection Molding (MIM)

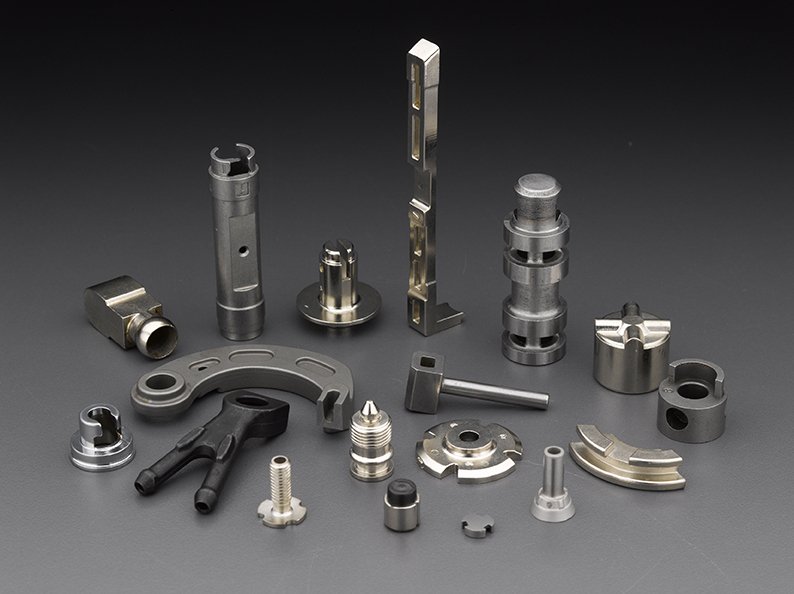

Metal Injection Molding (MIM) is a sophisticated metal forming technique that combines the design flexibility of plastic injection molding with the strength and integrity of metal. It is especially suited for producing small, complex-shaped metal components in high volumes with excellent mechanical properties and dimensional accuracy.

MIM is widely used in automotive, medical, electronics, defense, and consumer product industries, offering an efficient solution for manufacturing miniature precision components that are otherwise costly or impossible to machine.

---

What is Metal Injection Molding?

Metal Injection Molding is a powder metallurgy-based process that involves blending fine metal powders with a thermoplastic binder to form a feedstock. This feedstock is then injection molded into a desired shape, debindered to remove the binder, and finally sintered to form a fully dense metal component.

The process allows for the mass production of high-strength, intricate metal parts with tight tolerances and excellent surface finishes, making it ideal for geometries that are too complex or costly for traditional metalworking processes.

---

The MIM Process Flow

1. Feedstock Preparation

• Fine metal powder (typically <25 µm) is mixed with a thermoplastic binder (wax + polymer) to form a homogenous feedstock.

• Powders must exhibit high purity, spherical morphology, and consistent particle size distribution.

• SLM Metal, a trusted manufacturer of metal and iron powders, provides high-quality feedstock powders optimized for MIM processing.

2. Injection Molding

• The feedstock is injected into a mold cavity under high pressure and temperature using an injection molding machine.

• The output is a “green part” – a part in the shape of the final component but still containing binder.

3. Debinding

• The binder is removed from the green part using:

  • Solvent debinding (dissolves a portion of the binder)

  • Thermal debinding (evaporates remaining binder during controlled heating)

4. Sintering

• The debound part is heated in a furnace to near the melting temperature (e.g., 1200–1400°C), causing the metal particles to fuse.

• Shrinkage (~15–20%) occurs during sintering, resulting in a dense and mechanically robust metal component.

---

Materials Used in MIM

MIM supports a wide range of ferrous and non-ferrous alloys, including:

SLM Metal’s fine and high-purity metal powders are specifically engineered for MIM, ensuring consistent flow, uniform packing, and optimal sintering behavior.

---

Advantages of Metal Injection Molding

---

Applications of Metal Injection Molding

Automotive

• Turbocharger components, gear assemblies, sensor housings

• High-strength components with reduced weight

Medical and Dental

• Surgical instruments, orthodontic brackets, dental implants

• Biocompatible and corrosion-resistant MIM materials like 316L and Ti alloys

Consumer Electronics

• Smartphone components, watch cases, camera parts

• Miniaturized components with aesthetic appeal and strength

Industrial Tools

• Lock components, valve parts, cutting inserts

• Tool steels and wear-resistant alloys provide durability

Aerospace & Defense

• Lightweight structural parts, fasteners, weapon components

• High-performance alloys used for extreme conditions

---

Critical Parameters in MIM

---

Quality and Standards

Quality control in MIM follows stringent standards such as:

• ASTM MPIF 35

• ISO 22068

• ISO 13314 for sintered metals

• FDA, ISO 13485 for medical components

Advanced metallography, X-ray CT, tensile testing, and density measurements are employed for inspection.

---

Sustainability and Efficiency

• Material-efficient: Near-net shape production minimizes scrap.

• Recyclable powders: Excess feedstock can be reused.

• Energy-saving: Compared to machining from solid billets, MIM requires less material and energy input.

---

Metal Injection Molding is a transformative technology bridging the gap between plastic injection molding and conventional metal forming. With the ability to mass-produce small, intricate metal parts at a fraction of the cost and complexity of machining or casting, MIM is an indispensable process in today’s precision manufacturing landscape.

The success of MIM is highly dependent on powder quality, particularly in achieving desired mechanical properties and dimensional control. SLM Metal, as a trusted supplier of high-purity, fine metal powders tailored for MIM, plays a critical role in delivering consistent and reliable MIM feedstock materials to industries worldwide.
